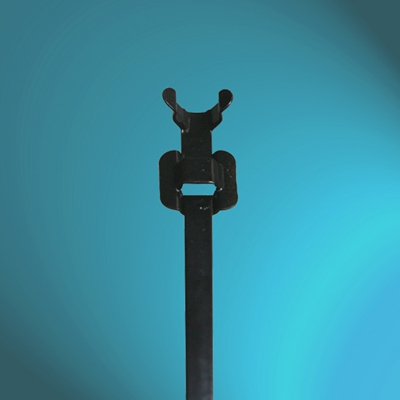

Expoxy Fully-Coated Stainless Steel Cable Ties Releasable

MATERIAL:

STAINLESS STEEL 304 OR 316

FEATURE:

THE SS TIES WITH THE UNIQUE BUCKLE LOCKING MECHANISM IS DESIGNED FOR THE APPLICATION WHERE HIGH TENSILE STRENGTH, NON-FLAMMABILITY, HIGH RESISTANCE TO ACETIC ACID, ALKALI ACID   AND SULPHURIC ACID ARE NEEDED.

COLOUR:

BLACK EPOXY (STANDARD)

STANDARD:

UL & DNV

WORK TEMP.:

-50℃～150℃

OPTION:

PVC OR PA11 COATING

(NYLON 11 FEATURE: PA11 PROVIDES STRONG RESISTANCE TO CHEMICAL, SALT SPRAY AND ABRASION. IT HAS EXCELLENT FLEXIBILITY.)

EASE CODE .

LENGTH

WIDTH

MAX. BUNDLE DIAMETER

MIN. TENSILE STRENGTH

mm (inch)

mm (inch)

mm (inch)

N (1bs)

CT-SS-RE-150/10FC-EP

150 (5.90)

10 (0.39)

33(1.30)

1000(225)

CT-SS-RE-190/10FC-EP

190(7.50)

10 (0.39)

46(1.80)

1000(225)

CT-SS-RE-250/10FC-EP

250(9.80)

10 (0.39)

65(2.60)

1000(225)

CT-SS-RE-300/10FC-EP

300(11.8)

10 (0.39)

81(3.20)

1000(225)

CT-SS-RE-350/10FC-EP

350(13.8)

10 (0.39)

97(3.80)

1000(225)

CT-SS-RE-400/10FC-EP

400(15.7)

10 (0.39)

113(4.40)

1000(225)

CT-SS-RE-450/10FC-EP

450(17.7)

10 (0.39)

129(5.10)

1000(225)

CT-SS-RE-490/10FC-EP

490(19.3)

10 (0.39)

141(5.60)

1000(225)

CT-SS-RE-550/10FC-EP

550(21.7)

10 (0.39)

161(6.30)

1000(225)

CT-SS-RE-600/10FC-EP

600(23.6)

10 (0.39)

176(6.90)

1000(225)

CT-SS-RE-650/10FC-EP

650(25.6)

10 (0.39)

192(7.60)

1000(225)

CT-SS-RE-700/10FC-EP

700(27.6)

10 (0.39)

208(8.20)

1000(225)
