CN-ZD-EMT-EMT
ES
85369090
| Quantity: | |
|---|---|

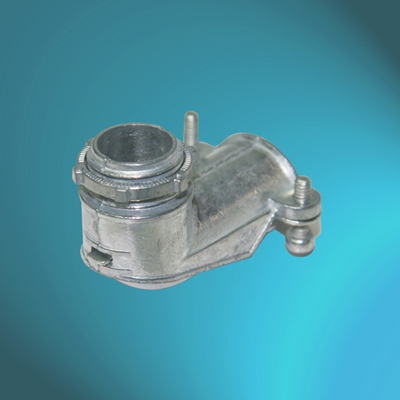

90℃ Zinc Die EMT Cast Connectors
SPECIFICATIONS | |||||
MATERIAL: | ZINC DIE CAST | ||||
FINISH: | SMOOTH, BALL BURNISHED | ||||
FEATURE: | ZINC DIE CAST SQUEEZE TYPE RIGHT ANGLE CONNECTORS ARE FOR LINKING EMT CONDUIT TO A BOX OR ENCLOSURE IN CORNER. | ||||
FITTING: | FOR EMT TYPE CONDUITS | ||||
EASE CODE | THREAD | CONDUIT SIZE | D | L | T |
inch | mm | mm | mm | ||
CN-ZD-EMT-90-3/8 | NPT3/8 | 3/8 | 20 | 45 | 12 |
CN-ZD-EMT-90-1/2 | NPT1/2 | 1/2 | 28 | 55 | 12 |
CN-ZD-EMT-90-3/4 | NPT3/4 | 3/4 | 33 | 60 | 12 |
CN-ZD-EMT-90-1 | NPT1 | 1 | 40 | 73 | 14 |
NOTE: BIG SIZES ARE AVAILABLE UPON REQUEST. | |||||
