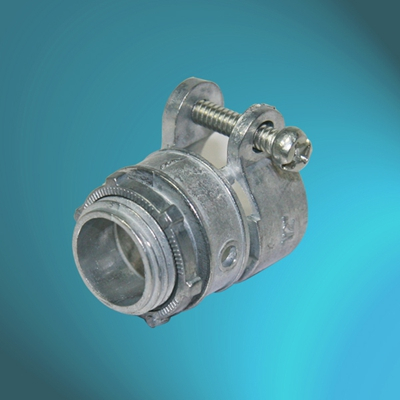

Squeeze Fixing Zinc Die EMT Cast Connectors

MATERIAL:

ZINC DIE CAST

FINISH:

SMOOTH, BALL BURNISHED

FEATURE:

ZINC DIE CAST SQUEEZE TYPE CONNECTORS ARE FOR LINKING EMT CONDUIT TO A BOX OR ENCLOSURE.

FITTING:

FOR EMT TYPE CONDUITS

EASE CODE

THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZD-EMT-SQ-3/8

NPT3/8

3/8

24

38

12

CN-ZD-EMT-SQ-1/2

NPT1/2

1/2

28

38

12

CN-ZD-EMT-SQ-3/4

NPT3/4

3/4

33

40

12

CN-ZD-EMT-SQ-1/2

NPT1

1

40

45

14

CN-ZD-EMT-SQ-1-1/4

NPT1-1/4

1-1/4

60

48

14

CN-ZD-EMT-SQ-1-1/2

NPT1-1/2

1-1/2

67

50

16

CN-ZD-EMT-SQ-2

NPT2

2

83

55

17
