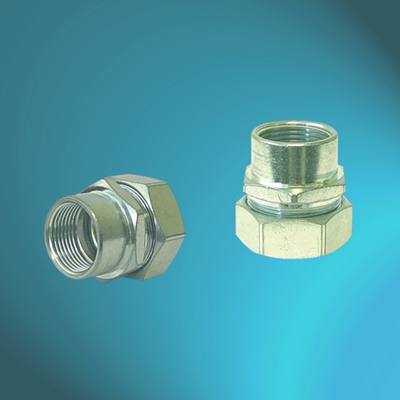

Internal Thread Zinc Alloy Connectors

MATERIAL:

ZINC ALLOY

COATING:

ZINC

COMPONENTS:

LOCK NUT, WASHER,ADAPTOR,FERRULE

FEATURE:

ZINC ALLOY INTERNAL THREAD TYPE CONNECTORS ARE FOR LINKING FLEXIBLE CONDUITS TO A BOX OR ENCLOSURE.

FITTING:

FOR FC-GS-FL TYPE CONDUITS

EASE CODE

EXTERNAL THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZA-GS-IN-1/4

M16

1/4

26

30

8

CN-ZA-GS-IN-3/8

M16,M18,M20

3/8

30

32

10

CN-ZA-GS-IN-1/2

M20,M25,M32

1/2

33

40

12

CN-ZA-GS-IN-3/4

M25,M32

3/4

40

40

13

CN-ZA-GS-IN1

M32,M40

1

48

48

14

CN-ZA-GS-IN-1-1/4

M40,M50

1-1/4

58

52

17

CN-ZA-GS-IN-1-1/2

M50,M63

1-1/2

63

55

19

CN-ZA-GS-IN-2

M63,M75

2

78

59

23

CN-ZA-GS-IN-2-1/2

M75,M90

2-1/2

107

69

25
