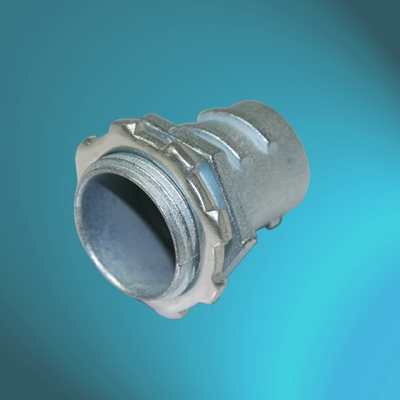

Flex Flxing Zinc Die Cast Connectors

MATERIAL:

ZINC DIE CAST

FINISH:

SMOOTH, BALL BURNISHED

FEATURE:

ZINC DIE CAST FLEX TYPE CONNECTORS ARE FOR CONNECTING A BOX TO FLEXIBLE CONDUITS BY SCREWING IN.

FITTING:

FOR FC-GS-US TYPE CONDUITS

EASE CODE

 THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZD-US-FF-3/8

NPT3/8

3/8

25

27.5

10

CN-ZD-US-FF-1/2

NPT1/2

1/2

25.5

30.5

10

CN-ZD-US-FF-3/4

NPT3/4

3/4

32.5

34

10.5

CN-ZD-US-FF-1

NPT1

1

37.5

36

11
