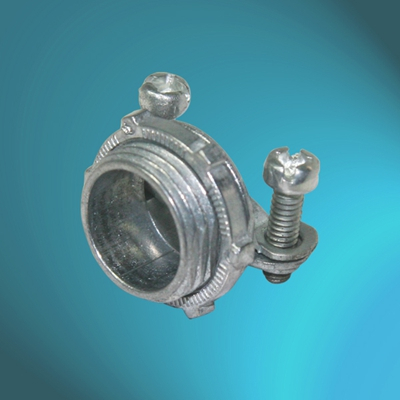

Clamping Fixing Zinc Die EMT Cast Connectors

MATERIAL:

ZINC DIE CAST

FINISH:

SMOOTH, BALL BURNISHED

FEATURE:

ZINC DIE CAST SET SCREW CLAMPING TYPE CONNECTORS ARE FOR ENTRANCE CABLE CLAMPING.

FITTING:

FOR EMT TYPE CONDUITS

EASE CODE

THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZD-EMT-CF-3/8

NPT3/8

3/8

30

21

12

CN-ZD-EMT-CF-1/2

NPT1/2

1/2

30

21

12

CN-ZD-EMT-CF-3/4

NPT3/4

3/4

42

26

12

CN-ZD-EMT-CF-1

NPT1

1

50

30

14

NOTE: BIG SIZES ARE AVAILABLE UPON REQUEST.
