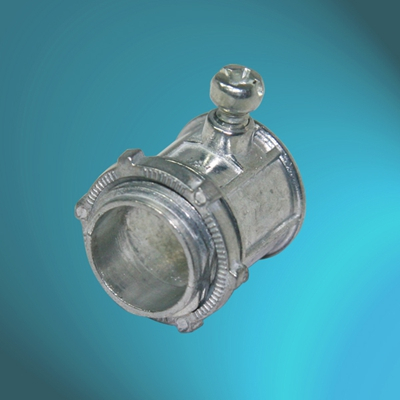

One Screw Flxing Zinc Die Cast EMT Connectors

MATERIAL:

ZINC DIE CAST

FINISH:

SMOOTH, BALL BURNISHED

FEATURE:

ZINC DIE CAST SET SCREW CONNECTORS ARE FOR LINKING EMT CONDUIT TO A BOX OR ENCLOSURE.

FITTING:

FOR EMT TYPE CONDUITS

EASE CODE

 THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZD-EMT-1S-1/2

NPT1/2

1/2

32

29

12

CN-ZD-EMT-1S-3/4

NPT3/4

3/4

36

36

12

CN-ZD-EMT-1S-1

NPT1

1

44

40

14

CN-ZD-EMT-1S-1-1/4

NPT1-1/4

1-1/4

48

49

14

CN-ZD-EMT-1S-1-1/2

NPT1-1/2

1-1/2

56

53

16

CN-ZD-EMT-1S-2

NPT2

2

72

62

17
