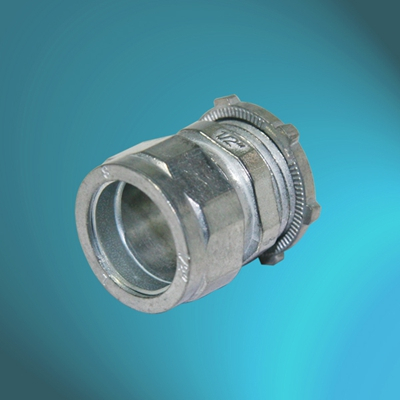

Non Screw Flxing Zinc Die Cast EMT Connectors

MATERIAL:

ZINC DIE CAST

FINISH:

SMOOTH, BALL BURNISHED

FEATURE:

ZINC DIE CAST COMPRESSION TYPE CONNECTORS ARE FOR LINKING EMT CONDUIT TO A BOX OR ENCLOSURE.

FITTING:

FOR EMT TYPE CONDUITS

EASE CODE

STEEL TUBE

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZD-EMT-NS-1/2

1/2

1/2

25.5

30.5

10

CN-ZD-EMT-NS-3/4

3/4

3/4

32

31

10.5

CN-ZD-EMT-NS-1

1

1

38

35

12.5

CN-ZD-EMT-NS-1-1/4

1-1/4

1-1/4

49

40.5

13.5

CN-ZD-EMT-NS-1-1/2

1-1/2

1-1/2

55

45

15

CN-ZD-EMT-NS-2

2

2

68

50.5

18
