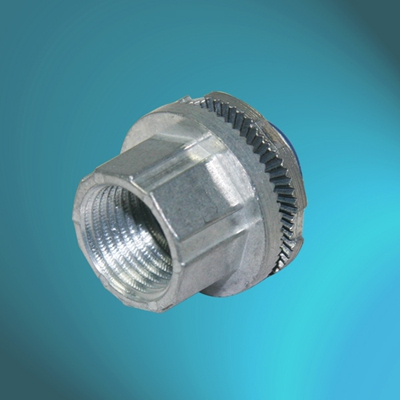

Liquid Tight Hub Zinc Die EMT Cast Connectors

MATERIAL:

ZINC DIE CAST

FINISH:

SMOOTH, BALL BURNISHED

FEATURE:

ZINC DIE CAST HUBS ARE FOR CONNECTING EMT CONDUIT LIQUID TIGHT TO A BOX OR ENCLOSURE.

FITTING:

FOR EMT TYPE CONDUITS IN WET/DRY APPLICATION

EASE CODE

THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZD-EMT-LT-1/2

1/2

1/2

39

33

12

CN-ZD-EMT-LT-3/4

3/4

3/4

41.5

38

14

CN-ZD-EMT-LT-1

1

1

52

40

16

CN-ZD-EMT-LT-1-1/4

1-1/4

1-1/4

59

45

17

NOTE: BIG SIZES ARE AVAILABLE UPON REQUEST.
