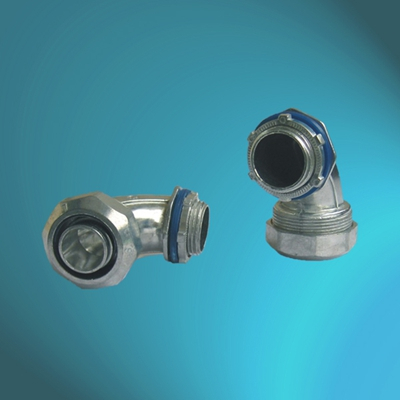

External Thread PV Zinc Alloy 90℃ Connectors

MATERIAL:

ZINC ALLOY

COATING:

ZINC

COMPONENTS:

LOCK NUT, WASHER,

ADAPTER, FERRULE,

SEALING RING,

CAP NUT.

FEATURE:

ZINC ALLOY TYPE RIGHT ANGLE CONNECTORS ARE FOR LINKING LIQUID TIGHT FLEXIBLE CONDUITS TO A BOX OR ENCLOSURE IN A CORNER.

FITTING:

FOR ALL FC-PV TYPE CONDUITS

EASE CODE

THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZA-PV-EX90-3/8

NPT3/8

3/8

35

44

12

CN-ZA-PV-EX90-1/2

NPT1/2

1/2

35

44

12

CN-ZA-PV-EX90-3/4

NPT3/4

3/4

41

47

12

CN-ZA-PV-EX90-1

NPT1

1

48

56

14

CN-ZA-PV-EX90-1-1/4

NPT1-1/4

1-1/4

60

64

16

CN-ZA-PV-EX90-1-1/2

NPT1-1/2

1-1/2

67

68

17

CN-ZA-PV-EX90-2

NPT2

2

80

74

17

CN-ZA-PV-EX90-2-1/2

NPT2-1/2

2-1/2

106

92

24

CN-ZA-PV-EX90-3

NPT3

3

120

105

25

CN-ZA-PV-EX90-4

NPT4

4

140

132

29
