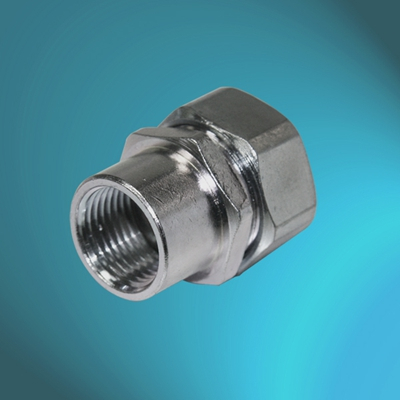

Rigid to Flxing Zinc Die Cast Connectors

MATERIAL:

ZINC ALLOY

COATING:

ZINC

FEATURE:

THE ZINC ALLOY CONNECTORS ARE FOR COMBINING EMT CONDUIT AND LIQUID TIGHT FLEXIBLE CONDUIT TOGETHER.

FITTING:

FOR FC-PV AND TYPE CONDUITS.

EASE CODE

INTERNAL THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZD-PV-CB-3/8

G3/8

3/8

30

32

10

CN-ZD-PV-CB-1/2

G1/2

1/2

33

40.5

12

CN-ZD-PV-CB-3/4

G3/4

3/4

40

40.5

13

CN-ZD-PV-CB-1

G1

1

48.3

44

14
