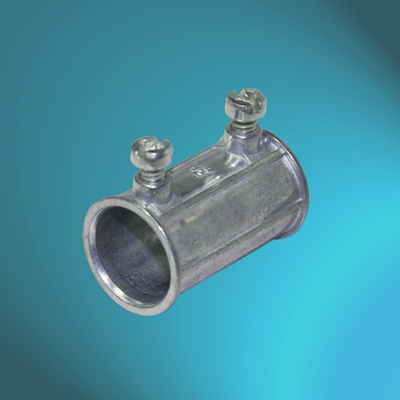

Two Screw Flxing Zinc Die Cast EMT Connectors

MATERIAL:

ZINC DIE CAST

FINISH:

SMOOTH, BALL BURNISHED

FEATURE:

ZINC DIE CAST SET SCREW CONNECTORS ARE FOR CONNECTING TWO EMT CONDUITS TO GETHER.

FITTING:

FOR EMT TYPE CONDUITS

EASE CODE

CONDUIT SIZE

D

L

inch

mm

mm

CN-ZD-EMT-2S-1/2

1/2

32

38

CN-ZD-EMT-2S-3/4

3/4

36

47

CN-ZD-EMT-2S-1

1

44

51

CN-ZD-EMT-2S-1-1/4

1-1/4

48

63

CN-ZD-EMT-2S-1-1/2

1-1/2

56

73

CN-ZD-EMT-2S-2

2

72

87
