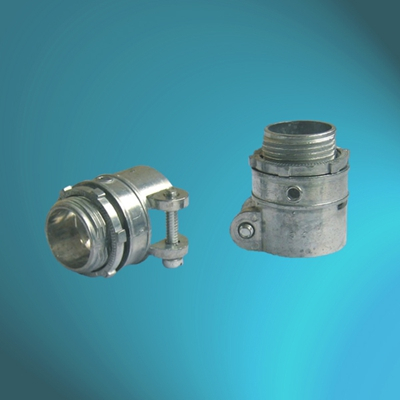

External Thread Zinc Die Cast Connectors US Type

MATERIAL:

ZINC DIE CAST

COATING:

ZINC

COMPONENTS:

CAP NUT, FERRULE

FITTING:

FOR FC-GS-US TYPE CONDUITS

EASE CODE

INTERNAL THREAD

CONDUIT SIZE

D

L

T

inch

mm

mm

mm

CN-ZD-GS-US-3/8

NPT3/8

3/8

24

38

12

CN-ZD-GS-US-1/2

NPT1/2

1/2

28

38

12

CN-ZD-GS-US-3/4

NPT3/4

3/4

33

40

12

CN-ZD-GS-US-1

NPT1

1

40

45

14

CN-ZD-GS-US-1-1/4

NPT1-1/4

1-1/4

60

48

14

CN-ZD-GS-US-1-1/2

NPT-1-1/2

1-1/2

67

50

16

CN-ZD-GS-US-2

NPT2

2

83

55

17
